Подробная информация о продукте:
|
| Чернил тип: | Сублимационные чернила, пигментные чернила | Цвет и страница: | Многоцветный |
|---|---|---|---|
| Использование: | Внутренняя и открытая реклама область | Совместимая ОС: | Windows 7 & Windows 10 |
| SOFWARE: | ОНИКС | Мощность обогревателя: | 6 кВт |
| Автоматический класс: | Автоматический | Напряжение: | AC100-120V/AC220-240V |
| Подходящий тип ткани: | Вязаный или тканый хлопок, льня, шелк, шерсть, химическое волокно, нейлон. Оксфорд и т. Д. | СМИ Обработка: | Roll To Roll + Auto Feeding + Auto Roll Up |

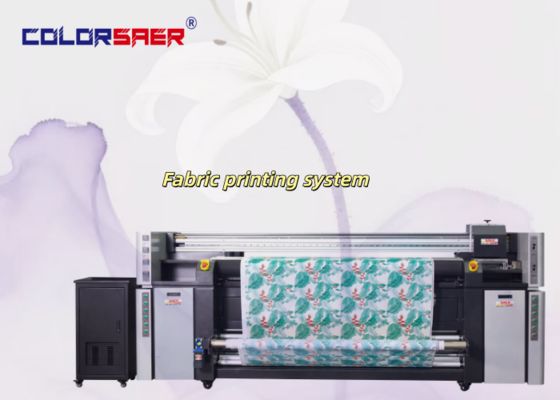

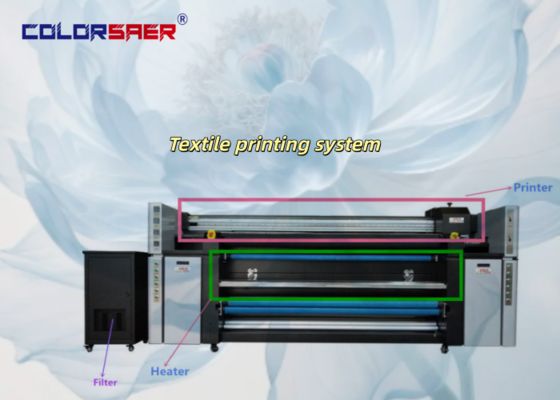

Product name: Factory Direct High Precision Textile Printer China Made Digital Fabric Printing System for Polyster & Cotton
Machine working speed :
|
Printing resolution and speed |
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Machine Specification
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Advantages:
Main Features :
Print head:
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
Guid Rail:
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Application industry:
