Подробная информация о продукте:
|
| Цвет и страница: | Многоцветный | Использование: | Внутренняя и открытая реклама область |
|---|---|---|---|
| Совместимая ОС: | Windows 7 & Windows 10 | SOFWARE: | ОНИКС |
| Мощность обогревателя: | 6 кВт | Автоматическая оценка: | Автоматический |
| Напряжение: | AC100-120V/AC220-240V | Подходящий тип ткани: | Вязаный или тканый хлопок, льня, шелк, шерсть, химическое волокно, нейлон. Оксфорд и т. Д. |
| СМИ Обработка: | Roll To Roll + Auto Feeding + Auto Roll Up | Тип чернил: | Сублимационные чернила и пигментные чернила |

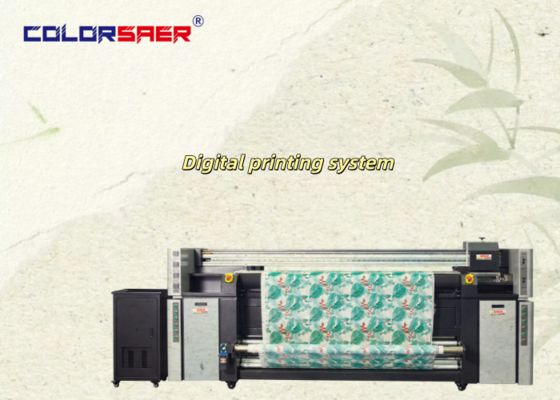

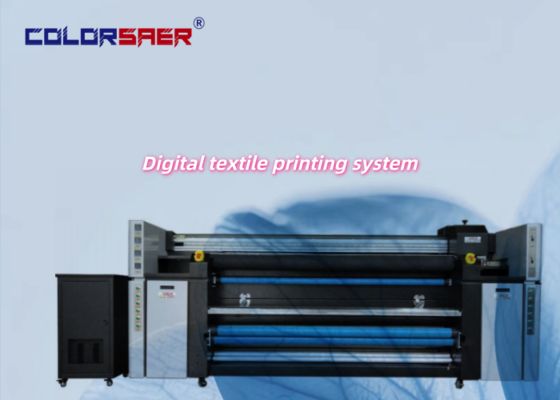

Product name: High Quality Textile Printing Equipment Epson Head Printer & Heater All-in-one printing system
Machine Specifications:
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
|
Power |
Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Machine working speed:
|
Printing resolution and speed |
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Advantages:
Main Features:
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Guid Rail:
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit
Print head:
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
Application industry:
