Подробная информация о продукте:
|
| Совместимая ОС: | Windows 7 & Windows 10 | SOFWARE: | ОНИКС |
|---|---|---|---|
| Мощность обогревателя: | 6 кВт | Автоматическая оценка: | Автоматический |
| Напряжение: | AC100-120V/AC220-240V | Подходящий тип ткани: | Полиэстер & хлопок |
| СМИ Обработка: | Roll To Roll + Auto Feeding + Auto Roll Up | Тип чернил: | Сублимационные чернила, пигментные чернила |
| Цвет и страница: | Многоцветный | Использование: | Внутренняя и открытая реклама область |

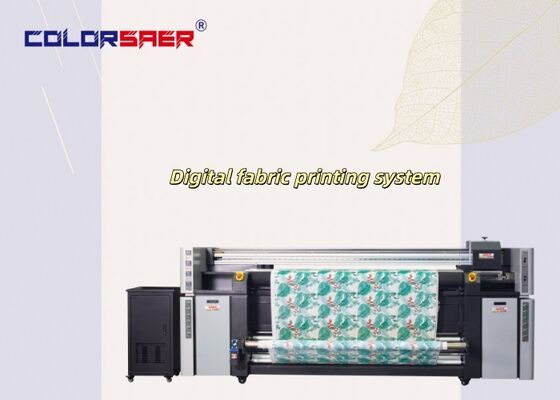

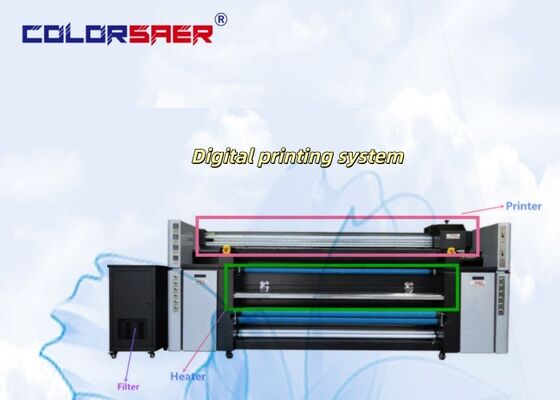

Product name: I3200 Head Inkjet Printers SAER Roll to Roll or Directly Out Curtain/Wall paper/ Umbrella/Tent/Flag Fabric Printing Machine
Machine working speed:
|
Printing resolution and speed |
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Machine Specifications:
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Application industry:
Main Features :
Print head:
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Guid Rail:
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
Advantages:
